Methods and Applications: An Open-Source Data Driven Hybrid Modeling System for Infectious Disease Surveillance and Early Warning

We selected three pathogen targets to test the system’s One Health versatility across distinct transmission modes and timescales: COVID-19 (acute respiratory disease requiring rapid community forecasting), SFTSV (vector-borne disease requiring ecological integration), and tuberculosis (chronic disease requiring long-term strategic planning). The pilot sites were chosen based on disease burden and data feasibility; for SFTSV, Shandong and Henan provinces were selected as high-endemicity regions in China, providing sufficient case volume to validate vector-driven models. For COVID-19, Yantai was selected as a representative coastal port city that experienced distinct waves of local transmission triggered by importation. This setting offered clear onset-to-suppression dynamics essential for validating the community forecasting model’s sensitivity to intervention measures. The system continuously ingests heterogeneous data, performs semantic harmonization, runs hybrid analytics (statistical baselines, mechanistic models, and deep-sequence learners), and emits a calibrated early warning score (EWS) for operations. Personally identifiable information was not collected or processed (Figure 1).

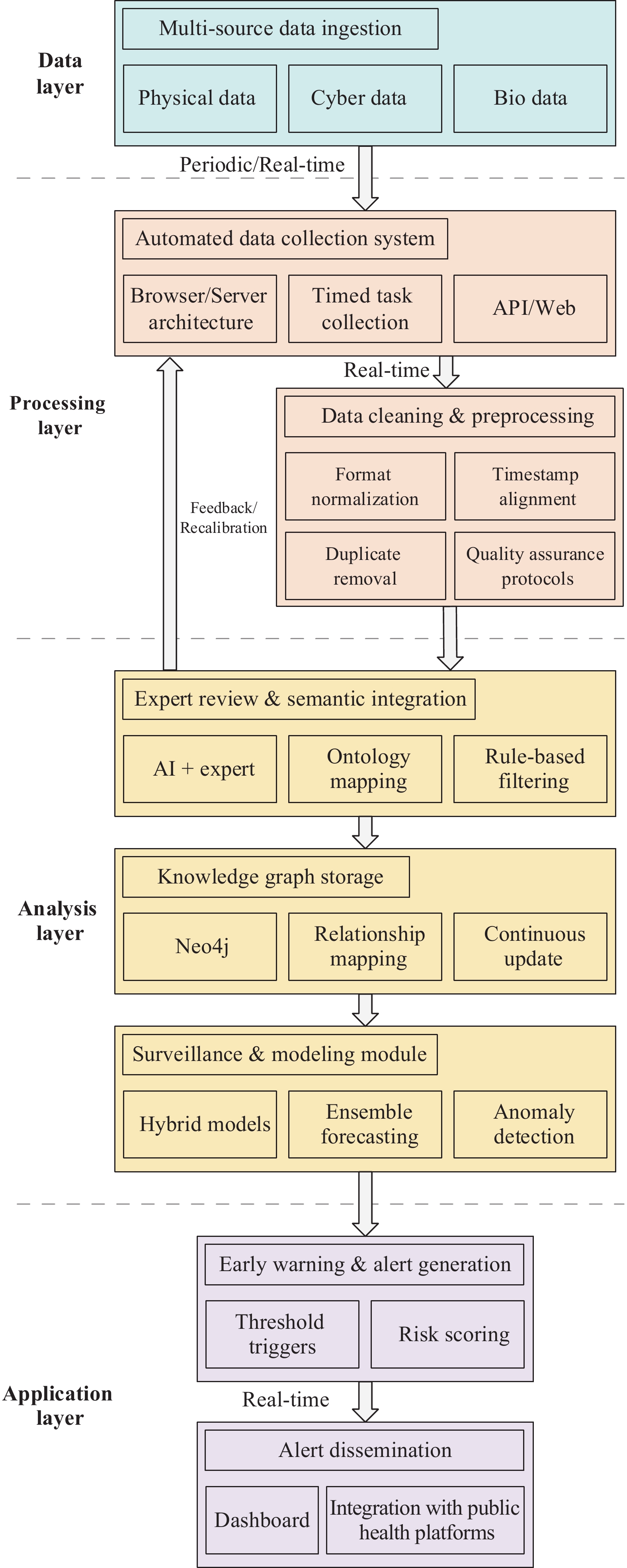

Figure 1.

Workflow from data ingestion to alert dissemination.

In this study, the term “open-source data” refers to open-source intelligence (OSINT) and publicly available datasets that are accessible without proprietary restrictions. These include official bulletins, digital signals, meteorological records, and anonymized mobility data, distinct from internal hospital records or confidential line-list data.

Official epidemiology relies on national/provincial bulletins and WHO/ECDC situation updates; digital epidemiology integrates multichannel digital traces such as search engine queries (Baidu Index, Wikipedia Pageviews), social media discussions (Weibo), and content from aggregators (Douyin/TikTok China, Toutiao), all equipped with geotags and temporal stamps; genomics provides sequence metadata for pathogen context; context & covariates encompass human mobility, meteorology, and holiday markers; and for the vector signal SFTSV, national tick index surveillance data is digitized from official graphs using scale-mean abstraction to create daily or weekly exogenous drivers, with monthly series derived through calendar aggregation.

In this study, we developed three distinct model components integrated through a hybrid framework, with detailed methodologies provided in the supplementary materials. The SFTSV model utilizes a network transmission approach where the vector driver is approximated by a Fourier series fitted to the 2018–2019 national tick index, assuming stationary seasonal phenology. For the COVID-19 model, an agent-based SEIR model was implemented on a dynamic contact graph; biological parameters were fixed to literature values to ensure identifiability, focusing calibration solely on the effective contact probability. Rifampicin-resistant tuberculosis (RR-TB) incidence was estimated following the WHO-recommended mathematical procedure (Supplementary Table S1). Finally, these outputs were integrated via hybrid fusion, employing logistic stacking as a meta-learner to weigh mechanistic and deep learning signals based on their historical performance.

Across pilots, the system operated at a pre-specified threshold tuned for decision utility (PPV constraint ≥0.70). Against officially confirmed events, the system achieved 83.30% sensitivity and 76.90% positive predictive value (PPV), with a median lead time of 9.30 days before first confirmation. Alerts and confirmatory timelines are illustrated in the dashboard traces (Figure 2E–F); adjudication logs indicate that most false positives arose from short sub-threshold anomalies that did not consolidate into confirmed events (Table 1).

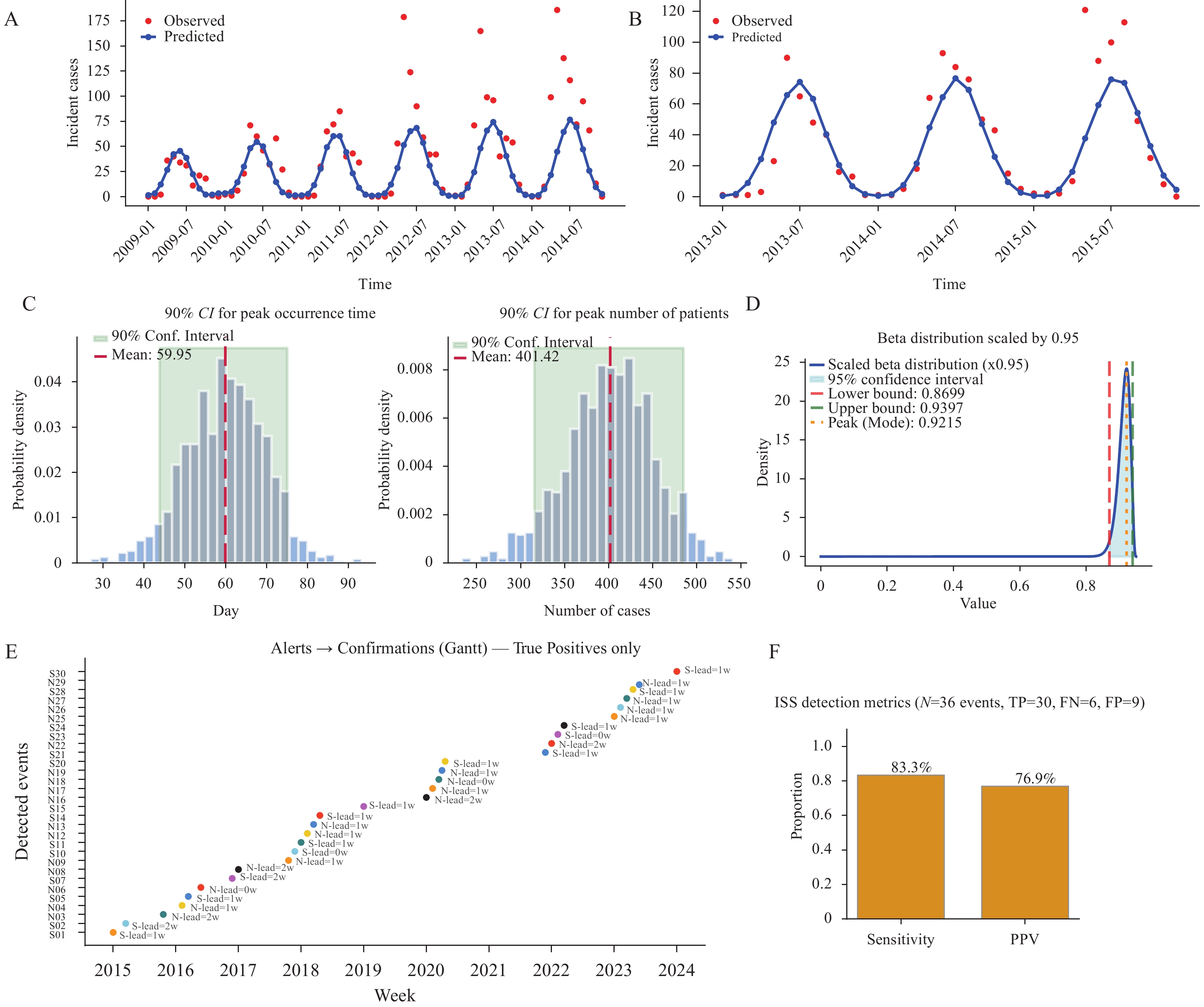

Figure 2.

Model performance across pilots. (A) Monthly SFTSV cases in Henan (2009–2014); (B) Monthly SFTSV cases in Shandong (2011–2015). (C) Posterior distributions of COVID-19 predicted outcome intervals; (D) Beta-distributed probability calibration for COVID-19 with 95% confidence intervals; (E) System alerts and official confirmations for true-positive events; (F) Aggregate detection metrics including sensitivity and positive predictive value.

Abbreviation: PPV=positive predictive value; SFTSV=severe fever with thrombocytopenia syndrome virus; CI=confidence interval; TP=true positive; FN=false negative; FP=false positive; COVID-19=coronavirus disease 2019.

For SFTSV monthly incidence forecasting in Shandong and Henan, the model’s predictions closely tracked observed trends in both provinces, as illustrated in Figure 3A–B. Using the pre-specified accuracy metric with bootstrap 95% confidence intervals (CIs), Shandong (2013–2015) achieved 90.29% accuracy (95% CI: 85.79%, 93.84%). Henan (2009–2014; including Xinyang) achieved 89.81% (95% CI: 86.24%, 93.08%).

Figure 3.

Dashboard (TB). (A) Incidence Trends and Projections; (B) Posterior Parameters and Model Application

Note: The system showed high stability in robustness checks under parameter perturbations.

Abbreviation: TB=tuberculosis.

Peak months and troughs aligned with the seasonality captured by the mechanistic (tick- and human-driven) transmission terms, and the model reproduced the interannual amplitude differences without overfitting (Figure 2A–B).

In the COVID-19 community forecasting conducted for Yantai, community-scale forecasts achieved 92.15% accuracy (95% CI: 86.99%, 93.96%) under the same definition. In peak-focused validation with 10,000 simulations (Poisson-drawn initial seeds within the 95% interval), the model achieved a peak timing accuracy of 88.43% (95% CI: 88.26%, 88.59%) and a peak magnitude accuracy of 91.16% (95% CI: 91.04%, 91.30%). The forecast trajectories and observed counts are shown in Figure 2C–D.

At the PPV-constrained threshold, the median lead time was 9.3 days (overall). Most detected events had ≥7 days’ advance notice; short-lead alerts (<7 days) clustered in late-season periods with compressed confirmation cycles (timeline examples in Figure 3E).

Our TB model, adapted from the recurrent framework of Li (5), closely reproduced historical trends (R²=0.95 for total incidence, 0.99 for RR-TB incidence, and 0.82 for TB deaths), with a posterior mean force of infection of 2.35 per year (95% CI: 1.16, 3.58). Projections to 2030 indicated an incidence rate of 33.7 per 100,000 (95% CI: 30.80, 38.30), below Li’s estimate of 44.9 but above the End TB target of 13, suggesting China’s 2024–2030 goal (43) is attainable. The model was implemented as an interactive Shiny application to support visualization and policy use.

This study demonstrates that the system can combine diverse open signals with hybrid models to produce calibrated early-warning scores constrained by positive predictive values, reducing false alerts while preserving sensitivity. We tested three pathogen contexts — COVID-19, SFTSV, and TB — and observed their practical utility in both acute and chronic use cases.

Semantic harmonization organized multi-source evidence into consistent geotemporal units, reducing ambiguity in sparse or fast-moving events. Hybrid modeling integrated statistical baselines, mobility- and climate-aware SEIR models (including a human-tick-human pathway for SFTSV), and short-horizon learners to preserve epidemiologic interpretability while capturing nonlinearity. PPV-constrained probability calibration translated model outputs into actionable alerts, improving resource allocation and limiting alert fatigue. Together, these choices enabled earlier, more precise alerts that aligned well with observed trends without overfitting to site-specific conditions.

While frameworks such as EWARS support outbreak management (8–9), their reliance on statutory reports limits their timeliness (6). Previous studies have often traded interpretability (statistical baselines) for short-term accuracy (machine learning), frequently lacking multisource integration. Our system advances the field by 1) hybridizing statistical, mechanistic, and sequence-based learners to balance interpretability with adaptability; 2) integrating open signals beyond statutory notifications; and 3) achieving high predictive accuracy and meaningful lead times relative to uncalibrated systems.

Qualitatively, the hybrid framework offers distinct advantages over the single-method baselines. Mechanistic SEIR models capture long-term seasonal trends but lag during stochastic onsets, whereas deepsequence learners offer high sensitivity but lack epidemiological transparency. By fusing these approaches, our system stabilizes forecasts during peaks while improving sensitivity during early onsets. Quantitatively, the system demonstrated a median lead time of 9.3 days relative to official confirmation. Given the inherent reporting lags in traditional passive surveillance (7), this represents a substantial window for pre-emptive intervention.

A modular design allows flexible application across pathogen contexts. The same framework generates outbreak alerts for COVID-19 and SFTSV while embedding TB analytics to strengthen screening and continuity of care. This adaptability enables emergency response and long-term control through a unified operational surface.

Operational utility differs across pathogen types. For acute outbreaks, such as COVID-19 and SFTSV, the system functions as a tactical early-warning tool, issuing short-horizon alerts (lead time <14 days) to trigger immediate containment measures such as targeted screening or vector control. For chronic diseases such as TB, the system serves a strategic forecasting function, projecting long-term trends (e.g., to 2030) to guide resource allocation and policy target setting. This multimodal capability aligns with the tiered surveillance architecture advocated in recent national guidance on intelligent multi-point trigger systems (8−9).

Embedding such a system into an operational setting can accelerate detection, improve the allocation of quarantine and laboratory resources, and better align vector control with clinical responses during high-risk periods. These functions align with national guidance on building a multipoint-trigger early-warning architecture (8−9) and with international calls to strengthen public health forecasting (12). The system also benefits from interoperable data contracts, such as HL7 FHIR, which facilitate scalable integration across health, customs, and laboratory agencies (14), as well as operator-oriented dashboards designed for real-time decision support (15). In the short term, priorities include regular recalibration, expanded data exchange with partner agencies, and the incorporation of operator feedback loops. In the medium term, multisite evaluations are required to provide robust evidence of improved timeliness and efficiency.

First, data-related issues exist in multiple aspects. Digital traces are susceptible to “media noise”, and smartphone-derived mobility data may underrepresent the elderly. Meanwhile, meteorological data face spatiotemporal alignment challenges. Second, there are ecological and modeling-related constraints. The national tick index has limited local granularity in terms of ecological constraints. Structural simplifications, assuming uniform mixing for COVID-19 or simplified vector-host cycles for SFTSV, may overlook microenvironmental heterogeneity. Finally, there are coverage and parameter-related problems. Pilot coverage was geographically limited, and parameter uncertainty persists as PPV thresholds need recalibration and TB models depend on uncertain latent progression parameters.
