Methods and Applications: A New Approach Refined Probabilistic Health Risk Assessment of Shaoguan Smelter Based on Microenvironment — Guangdong Province, China, 2021

The smelter, located in Guangdong Province and established in 1966, produces electric lead, refined zinc, cadmium, and mercury. It has an annual capacity of 350,000 tons, making it the third-largest smelter in China (Figure 1) (9).

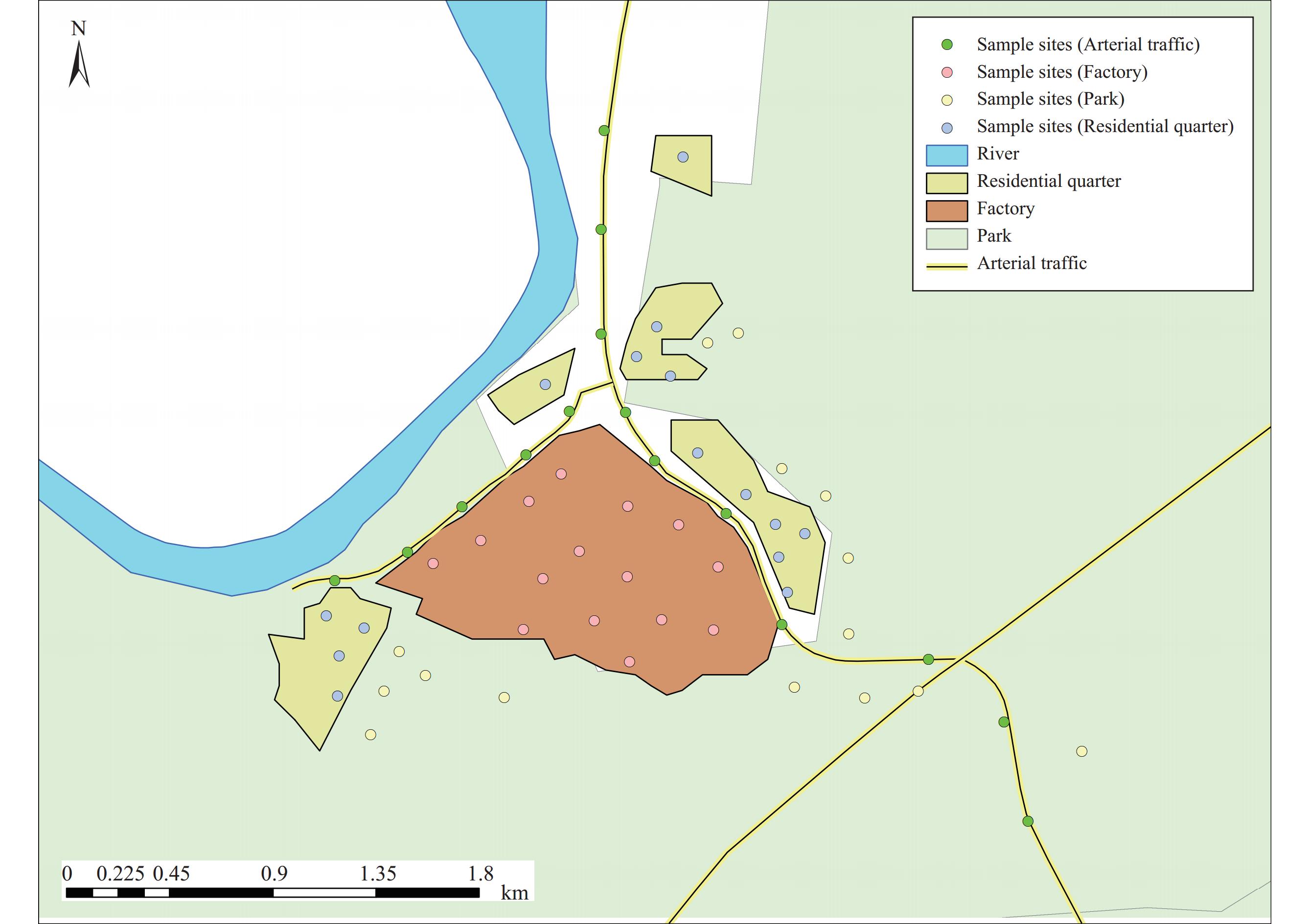

Figure 1.

Location and sampling sites within the study area.

Land use type plays a critical role in assessing the health risks associated with land. Utilizing satellite images from the Google Maps service (2018), our study area was categorized into four primary land use types: 1) factory area, 2) residential area, 3) transportation area (T), and 4) park (P). This research comprehensively evaluated the contamination levels of 16 heavy metals — beryllium, chromium, manganese, cobalt, nickel, copper, zinc, arsenic, molybdenum, silver, tin, antimony, thallium, plumbum, cadmium, and mercury (Be, Cr, Mn, Co, Ni, Cu, Zn, As, Mo, Ag, Sn, Sb, Tl, Pb, Cd, and Hg) in both plant life and surrounding soils, resulting in the collection of 60 samples, with 15 samples from each specified microenvironment (10). The geographic coordinates of all sample sites were precisely documented using handheld Global Positioning System (GPS) devices (Figure 1). Following the protocol outlined in GB/T 36197-201, each representative soil sample, obtained from the top 10 cm, constituted a composite of five sub-samples collected from a minimum spacing of 1 m at each site. After the exclusion of large stones and grassroots, the initial weight of each sample was ensured to be no less than 1 kg. All samples were preserved in polyethylene bags and transported to the laboratory for detailed analysis.

In the laboratory, soil samples were initially dried in a cool, ventilated area and sieved using a 100 mesh screen. Subsequently, these samples were digested employing the HNO₃-HClO₄-HF method and stored in amber glass vials. As and Hg concentrations were quantified using an atomic fluorescence spectrometer (AFS-8220, Beijing Titan Instruments, China), while concentrations of other TM were measured with an inductively coupled plasma mass spectrometer (ICP-MS Agilent 7900) (11). For As and Hg, analysis and quality assurance/quality control (QA/QC) procedures followed the HJ 680 standard (12), and for other TMs, the USEPA 6020B method (USEPA, 2014b) was used.

A total of 487 questionnaires were administered at the study site, categorized by age into adults (ages over 18 years, n=238) and children (ages under 18 years, n=249). The participants, all permanent residents living within 5 km of the smelter for at least six months, included children under 8 years whose questionnaires were completed by their parents. The questionnaire comprised two sections: the first section gathered basic demographic and physical data such as gender, age, height, and weight; the second involved a 24-hour time-activity pattern survey that classified respondent’s time spent across four distinct microenvironments (13). Data collection was conducted through face-to-face interviews, during which responses were directly recorded by the interviewer.

Human health risks, encompassing both carcinogenic (CR) and non-carcinogenic risks (NCR), were evaluated for two distinct groups: adults and children. The detailed health risk assessment model can be found in Supplementary Material.

In this study, we utilized the Monte Carlo simulation as a probabilistic method to evaluate health risks. Input variables, including C, EF, ET, IR, and BW, were modeled using specific probability distribution functions derived from field investigation results. Due to the scarcity of sufficient toxicological data for each heavy metal, the RfD and SF were modeled as point estimates (Supplementary Table S1). To enhance the reliability of the findings, we performed 10,000 random iterations for each input variable during the simulations. The mean values and 95th percentiles of NCR and CR, calculated from the probabilistic outputs, were used to assess the health risks associated with multiple heavy metals (14-15).

Statistical analysis was performed using SPSS Statistics (version 22.0; IBM Corp., Armonk, NY, USA). Distribution tests and charting were conducted using Origin (version 2019; Origin Lab Corp., Northampton, MA, USA). The Monte Carlo simulation was executed with Crystal Ball Software (version 11.1; Oracle Inc., Oracle, CA, USA).

A deterministic risk assessment was conducted at 60 sampling sites within the study area to evaluate both CR and NCR (Supplementary Tables S2–S3). The health risk levels at the 95% quantile for TMs including Be, Cr, Ni, Cu, Mo, Zn, Ag, and Sn were found to be within the acceptable risk thresholds for cancer and non-carcinogenic effects in both adults and children (Figure 2).

Figure 2.

Deterministic risk assessment plotted on a logarithmic scale (base 10). (A) Adult carcinogenic risk; (B) Children carcinogenic risk; (C) Adult non-carcinogenic risk; (D) Children non-carcinogenic risk.

Note: The whiskers indicate deterministic risk outcomes at the 5% and 95% quantile concentrations at sampling points, while the dots correspond to deterministic risk outcomes at median concentrations.

However, chronic exposure to other TMs in sensitive populations is associated with a significant CR. The median CR values for Co and As and the 95% quantiles for Cd and Pb in adults exceeded the US EPA recommended threshold of 1×10^-6 (Figure 2A). In children, the median values for Co, As, and Pb and the 95% quantiles for Cd surpassed acceptable risk levels, with the 95% CR for As and Pb exceeding 1×10^-4. Therefore, further probabilistic analysis is essential to accurately assess the risks associated with exposure to Co, As, Cd, and Pb (Figure 2B).

Regarding the NCR from population exposure, the median risk for Mn in adults was 2.77, surpassing the level recommended by the US EPA (NCR=1). Additionally, the 95th percentile values for As and Cd were 8.17 and 1.09, respectively, both exceeding established threshold values (Figure 2C). Median levels of Mn and As, along with the 95th percentile levels for Cd, Sb, and Hg in children, also surpassed the acceptable risk thresholds. Consequently, further analysis is warranted for the risks associated with Mn, As, Cd, Sb, and Hg. Ultimately, a probabilistic risk assessment is essential to ascertain the potential risks to residents from Co, Cd, Sb, Mn, As, Pb, and Hg (Figure 2D).

In this study, we collected data on height, weight, and age of the exposed local population through a questionnaire survey and derived the probability distribution of exposure parameters and pollutant concentrations using Monte Carlo simulation (Supplementary Tables S4–S5). For assessing population health risks across various microenvironments, exposure time (ET) was defined as the duration spent daily by sensitive populations in these different settings (Supplementary Table S6). Based on the questionnaire results, ET was modeled using a triangular distribution.

The probability distribution of the total carcinogenic risk (TCR) associated with TMs across various microenvironments was analyzed (Figure 3). Details on the CR for specific TMs within each microenvironment are available in the supplementary data (Supplementary Figures S1–S4). The average CR for adults demonstrated the highest values in residential areas (2.84×10^-5), followed by factories (1.74×10^-5), parks (3.43×10^-6), and traffic arteries (3.27×10^-6). For children, residential areas also showed the highest CR (6.7×10^-5), then traffic arteries (6.2×10^-6), and parks (3.52×10^-6). The likelihood of CR exceeding 1×10^-6 for both adults and children ranged from 60% to 72% in parks and traffic arteries (Figures 3B–3C), while in residential and factory settings, this probability was approximately 95% (Figures 3A and 3D). As and Pb were identified as having the highest CR in each studied microenvironment (Supplementary Figures S1–S4).

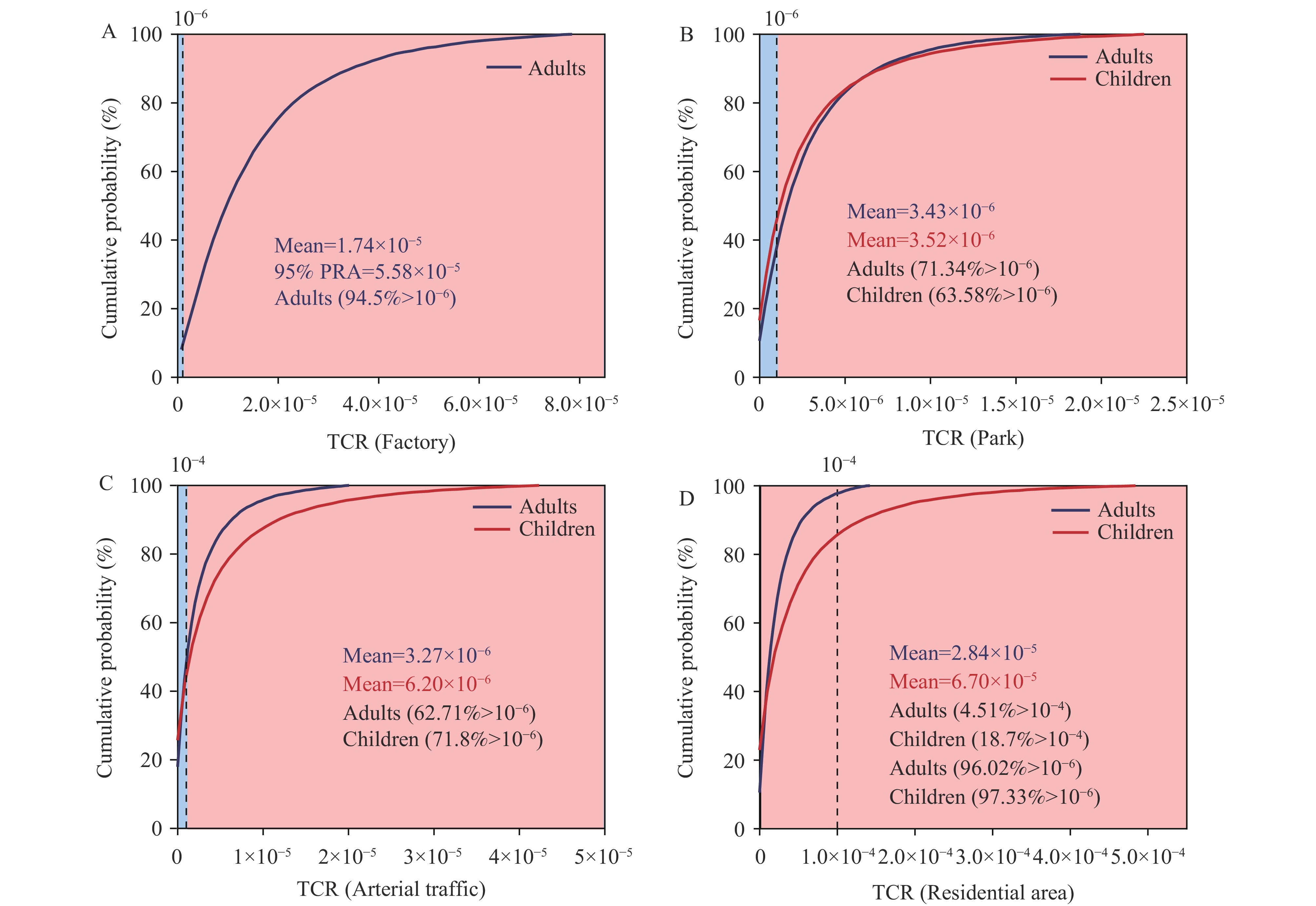

Figure 3.

Probability distribution characteristics of total carcinogenic risk of trace metals in various microenvironments. (A) Factory; (B) Park; (C) Arterial traffic; (D) Residential area.

Abbreviation: TCR=the total carcinogenic risk.

The probability distribution of the total non-carcinogenic risk (TNCR) associated with TMs in various microenvironments was calculated as shown in Figure 4. Detailed assessments of specific TMs in individual microenvironments can be found in Supplementary Figures S5–S8. The average NCR for adults was highest in residential areas (1.59), followed by factories (1.17), parks (0.35), and traffic arteries (0.21). For children, the risks were most severe in residential areas (5.57), then traffic arteries (0.74), and parks (0.59). The 95% quantile for adult NCR in park and traffic environments was below 1, indicating minimal health risks; however, the probability that children’s average NCR exceeded 1 was 14% and 19.5%, respectively (Figure 4B and 4C). Within the factory environment, 44.35% of workers faced a NCR greater than 1 (Figure 4A). In residential settings, the probabilities of NCRs exceeding 1 for adults and children were 68.2% and 91.8%, respectively (Figure 4D). As and Mn presented the highest NCRs across all studied microenvironments (Supplementary Figures S5–S8).

Figure 4.

Probability distribution characteristics of total non-carcinogenic risk for trace metals in various microenvironments. (A) Factory; (B) Park; (C) Arterial traffic; (D) Residential area.

Abbreviation: TNCR=the total non-carcinogenic risk.

Generally, to minimize restoration costs, priority regions and main contaminants for remediation in residential and industrial areas have been identified as As, Pb, and Mn.

Table 1 delineates the discrepancies between deterministic and probabilistic risk assessment methodologies. For instance, the deterministic assessment indicates that the CR for adults due to Pb are within the acceptable thresholds set by the USEPA. In contrast, probabilistic assessments show that the median CR from Pb exposure is 1.01×10^-5, surpassing the acceptable risk level. Additionally, the results from probabilistic assessments for Mn, Sb, and Hg are higher than those obtained from deterministic assessments, suggesting that deterministic methods may underrepresent the associated risks. Conversely, with As, the probabilistic method yielded higher NCR results, but lower CR compared to deterministic assessments. Similarly, the hazard quotients for Cd and Co in adults increased under the probabilistic method, while decreasing for other elements. This variation can likely be attributed to the probabilistic method providing a more detailed analysis of the concentrations of each TM involved.

In this study, an initial deterministic risk assessment was conducted to identify high-risk pollutants. The assessment revealed that the concentrations of Co, Cd, Sb, Mn, As, Pb, and Hg pose significant risks to both adults and children. Research indicates that maternal exposure to these metal mixtures during pregnancy is linked to an increased risk of congenital heart defects, allergic disorders, and neurodevelopmental disorders in offspring (16–18). Furthermore, exposure to neurotoxic metals is associated with cognitive decline in older adults (19). Cadmium exposure has also been implicated in the onset of obesity and related metabolic disorders (20). Additionally, elevated serum levels of lead and cadmium have been shown to negatively impact red blood cell folate levels and contribute to reproductive toxicity and the development of testicular germ cell neoplasia in situ in murine models (21-22). Given these findings, it is crucial to execute a more precise probabilistic risk assessment for these identified high-risk pollutants.

Variables such as exposure duration and pollutant concentration can vary markedly in the dynamic settings of work and living environments, critically influencing the outcomes of risk assessments (8,23). Regional assessments have been employed to evaluate probabilistic health risks from heavy metal exposure, considering varying exposure frequencies, routes, and land uses (24). In a study from The Republic of Korea, the health risks associated with particulate matter exposure among preschool children in Seoul were evaluated, taking into account primary microenvironments and their corresponding time-activity patterns (25). This study developed an advanced probabilistic health risk assessment model focusing on microenvironmental exposures, which pertain to pollutant exposure within specific, spatially-defined areas over time, particularly where individuals reside or interact with environmental pollutants. Findings from this microenvironment-based probabilistic health risk assessment indicated that critical areas and primary targets in residential and factory settings face the highest health risks, with As, Pb, and Mn identified as the main contaminants of concern.

Previous studies have indicated that the primary distinction lies in the supplemental data gained through probabilistic assessment. This information can be employed to implement proactive actions to mitigate current exposure. Furthermore, probabilistic assessment offers insights into the extent of exposure and the safety margin (26), providing critical guidance for soil management and remediation.

It can be concluded that using a risk assessment model tailored to specific microenvironments has significantly reduced the extent of contaminated land requiring treatment and rehabilitation. However, this approach is primarily effective for small-scale pollutant exposures. Additionally, it is challenging to delineate the contribution of various soil pollution sources to health risks. Future models for health risk assessment should consider integrating additional limiting factors, including exposure among occupational populations and soil characteristics such as type, particle size, permeability, and pH. Incorporating these factors would furnish decision-makers with more precise and critical information.
